In this work, we extend a common framework for graph-based image segmentation that includes the graph cuts, random walker, and shortest path optimization algorithms. Viewing an image as a weighted graph, these algorithms can be expressed by means of a common energy function with differing choices of a parameter q acting as an exponent on the differences between neighboring nodes. Introducing a new parameter p that fixes a power for the edge weights allows us to also include the optimal spanning forest algorithm for watershed in this same framework. We then propose a new family of segmentation algorithms that fixes p to produce an optimal spanning forest but varies the power q beyond the usual watershed algorithm, which we term power watershed. In particular when q = 2, the power watershed leads to a multilabel, scale and contrast invariant, unique global optimum obtained in practice in quasi-linear time. Placing the watershed algorithm in this energy minimization framework also opens new possibilities for using unary terms in traditional watershed segmentation and using watershed to optimize more general models of use in applications beyond image segmentation. Two examples of such applications are surface reconstruction and anisotropic diffusion.

- A PAMI paper is available here.
- Surface reconstruction is available here.
- Anisotropic diffusion is available here.

- Source is available from SourceForge.

## Surface Reconstruction with Power Watershed

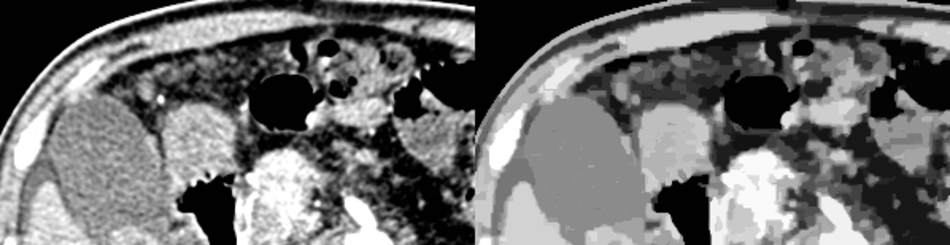

## Anisotropic Diffusion with Power Watershed

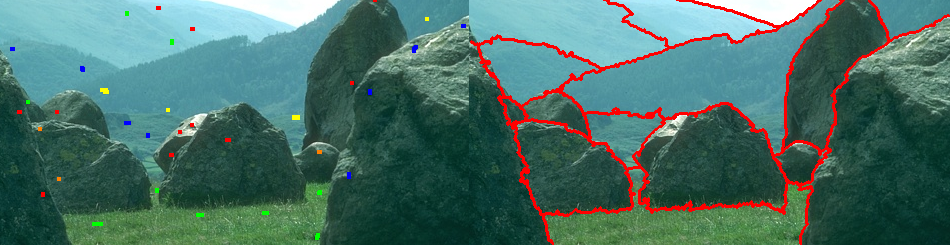

## Segmentation of multiple objects with Power Watershed
